Chemo Port
Product Quick Finder
For chemotherapy, analgesic therapy, antibiotic therapy and other solutions, injections and infusions of blood components and derivatives, repetitive drawing of blood samples.
The system is:
SAFE
All HEALTHPICC catheter are made of Polyurethane and suitable for high-pressure injections (max flow rate as reported in the table below)
SIMPLE
Catheter connection can easily be done in a few seconds; chamber shapes allow easy introduction into the underskin pocket.
VERSATILE
Wide choice of chamber models and catheter sizes make the Healthport system appropriate for all patients, users and clinical requirement

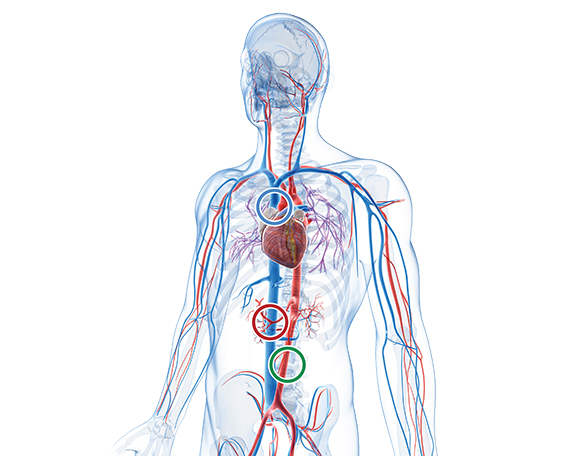

| ETI | LP | PLP | POWER TI | POWER PLP | miniMAX | FOCUS DC | |
| VENOUS SYSTEM | |||||||
| SPINAL SYSTEM | |||||||
| ARTERIAL SYSTEM |
Easy to Implant
Implantable Port
- Small chamber
- Wedge-shaped for easy insertion into underskin pocket
- Large self-sealing septum facilitates location during skin palpation and reduces risks of puncture concentration
- High needle retention due to pressure exerted on self-sealing septum by titanium components
- Titanium assures highest mechanical reliability and stability
Features
Chamber
| Material: | titanium |
| Shape and dimensions: | wedged – base 27.5 mm x 19 mm |
| Height: | 10.5 mm |
| Weight: | 10.5 g |
| Internal volume: | 0.53 ml |
Septum
| Material: | silicone |
| Diameter available for puncture | 12.8 mm |
| Maximum number of punctures | 2000 with 22 GA Huber needle |
| 1000 with 19 GA Huber needle |
Catheter with rounded tip, marked with a dot every centimetre and a number every 5 centimetres.
All-in-One
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.17.12.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.17.12.31 | Silicone | 1.5 | 2.7 | 8 | 780 | 1.37 |
| 201.17.12.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler
Standard
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.17.10.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.17.10.31 | Silicone | 1.5 | 2.7 | 8 | 780 | 1.37 |
| 201.17.10.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
Venous Introducer Set
| REF | Colour Code | |
| 201.51.10.21 | Introducer set 6.5 FR | |
| 201.51.10.31 | Introducer set 9 FR | |
| 201.51.10.41 | Introducer set 5 FR |
Package Configuration
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler

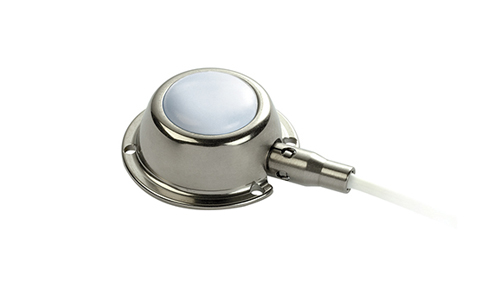

Low Profile
Implantable Port
- Small chamber
- Circular (dome) shape for maximum stability of the cham ber-risk of “flipping” minimized
- Large self-sealing septum facilitates location during skin palpation and reduces risks of puncture concentration
- High needle retention due to pressure exerted on self-sealing septum by titanium components
- Titanium assures highest mechanical reliability and stability
Features
Chamber
| Material: | titanium |
| Shape and dimensions: | circular – base diameter 26 mm |
| Height: | 10.2 mm |
| Weight: | 8.5 g |
| Internal volume: | 0.53 ml |
Septum
| Material: | silicone |
| Diameter available for puncture | 12.8 mm |
| Maximum number of punctures | 2000 with 22 GA Huber needle |
| 1000 with 19 GA Huber needle |
Catheter with rounded tip, marked with a dot every centimetre and a number every 5 centimetres
All-in-One
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.17.12.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.17.12.31 | Silicone | 1.5 | 2.7 | 8 | 780 | 1.37 |
| 201.17.12.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler
Standard
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.17.10.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.17.10.31 | Silicone | 1.5 | 2.7 | 8 | 780 | 1.37 |
| 201.17.10.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
Venous Introducer Set
| REF | Colour Code | |
| 201.51.10.21 | Introducer set 6.5 FR | |
| 201.51.10.31 | Introducer set 9 FR | |
| 201.51.10.41 | Introducer set 5 FR |
Package Configuration
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler

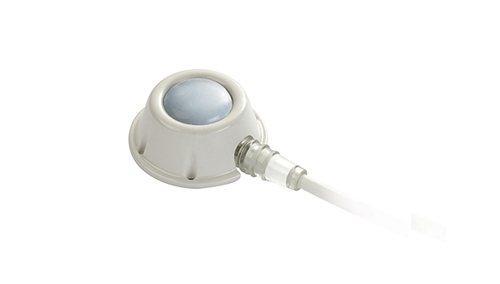

Plastic Low Profile
Implantable Port
- Low profile plastic chamber, also suitable for patients with thick subcutaneous fat layer
- Light weight and cost-effective
- Titanium internal chamber avoids damages induced by needle tip and avoids interactions between plastic and drugs
- Large self-sealing septum facilitates location during skin palpation and reduces risks of puncture concentration
- Transparent and radiopaque elastomeric connector allows rapid, safe and reversible connection of the catheter
Features
Chamber
| Material: | titanium |
| Shape and dimensions: | circular – base diameter 27 mm |
| Height: | 10.6 mm |
| Weight: | 5.9 g |
| Internal volume: | 0.36 ml |
Septum
| Material: | silicone |
| Diameter available for puncture | 13 mm |
| Maximum number of punctures | 2000 with 22 GA Huber needle |
| 1000 with 19 GA Huber needle |
Catheter with rounded tip, marked with a dot every centimetre and a number every 5 centimetres
All-in-One
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.17.12.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.17.12.31 | Silicone | 1.5 | 2.7 | 8 | 780 | 1.37 |
| 201.17.12.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
| 201.22.12.20 | Polyurethane | 1.3 | 1.7 | 5 | 600 | 0.63 |
| 201.22.12.33 | Polyurethane | 1.6 | 1.7 | 5 | 600 | 1.21 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler
Standard
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.17.10.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.17.10.31 | Silicone | 1.5 | 2.7 | 8 | 780 | 1.37 |
| 201.17.10.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
Venous Introducer Set
| REF | Colour Code | |
| 201.51.10.21 | Introducer set 6.5 FR | |
| 201.51.10.31 | Introducer set 9 FR | |
| 201.51.10.41 | Introducer set 5 FR |
Package Configuration
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler

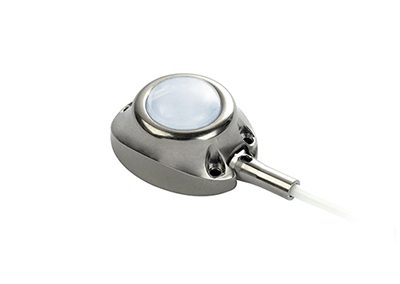

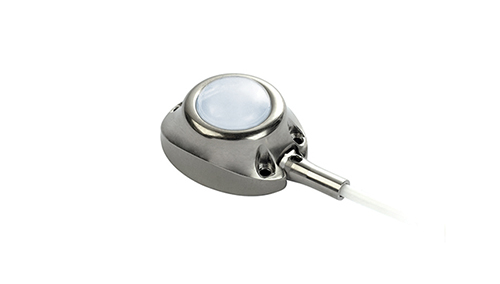

miniMAX
Implantable Port-Mini
- Extra small chamber
- Wedge-shaped for easy insertion into underskin pocket
- Large self-sealing septum surface (in relation to overall dimensions
- Suitable for patients with “cosmetic” needs or paediatric patients
- High needle retention due to pressure exerted on self-sealing septum by titanium components
- Titanium assures highest mechanical reliability and stability
Features
Chamber
| Material: | titanium |
| Shape and dimensions: | wedged – base 21 mm x 16 mm |
| Height: | 8.6 mm |
| Weight: | 6 g |
| Internal volume: | 0.2 ml |
Septum
| Material: | silicone |
| Diameter available for puncture | 9 mm |
| Maximum number of punctures | 1500 with 22 GA Huber needle |
Catheter with rounded tip, marked with a dot every centimetre and a number every 5 centimetres
All-in-One
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.16.12.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.16.12.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
| Pediatric* 201.16.12.55 |
Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
Dedicated introducer needle, initial guidewire, peel away and tunneler
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler
Standard
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.16.10.21 | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
| 201.16.10.41 | Polyurethane | 1.1 | 1.7 | 5 | 780 | 0.74 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
Venous Introducer Set
| REF | Colour Code | |
| 201.51.10.21 | Introducer set 6.5 FR | |
| 201.51.10.41 | Introducer set 5 FR |
Package Configuration
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler

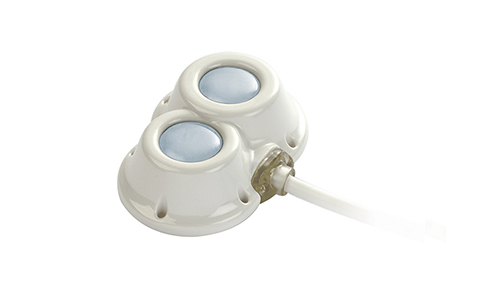

FOCUS DC
Implantable Port – Dual Chamber
- Double chamber with independent outlet tubes
- Different diameter and height allow easy and safe identification of each chamber during skin palpation
- Suitable for simultaneous infusion of drug that are incompatible (e.g. crystallization risk)
- Large self-sealing septums
- Titanium internal chamber avoids damages induced by needle tip and avoids interactions between plastic and drugs.
Features
Chamber
| Material: | titanium + polysulphon |
| Shape and dimensions: | base 50 mm x 34 mm |
| Height: | 13.9 mm – 15.4 mm |
| Weight: | 19.7 g |
| Internal volume: | 0.53 ml – 0.52 ml |
Septum
| Material: | silicone |
| Diameter available for puncture | 12.7 mm |
| Maximum number of punctures | 2000 with 22 GA Huber needle 1000 with 19 GA Huber needle |
* For each septum
Catheter with rounded tip, marked with a dot every centimetre and a number every 5 centimetres
Standard
| REF | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.21.10.91 | Silicone with two lumens | small 1.0 big 1.3 |
3.4 | 6.5 | 600 | 0.61 1.3 |
Dedicated introducer needle, initial guidewire, peel away and tunneler
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
Venous Introducer Set
| REF | Colour Code | |
| 201.51.10.91 | Introducer set 11 FR |
Package Configuration
- Peel-away dilator-introducer
- 18 GA introducer needle
- 0,89 mm J-Guidewire
- Stainless steel tunneler

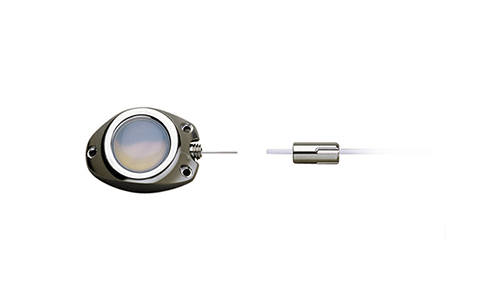

Easy to Implant – Spinal
Implantable Port – Spinal System
- Small chamber
- Wedge-shaped for easy insertion into underskin pocket
- Large self-sealing septum facilitates location during skin palpation and reduces risks of puncture concentration
- High needle retention due to pressure exerted on self-sealing septum by titanium components
- Titanium assures highest mechanical reliability and stability
Features
Chamber
| Material: | titanium |
| Shape and dimensions: | wedged – base 27.5 mm x 19 mm |
| Height: | 10.5 mm |
| Weight: | 10.5 g |
| Internal volume: | 0.53 ml |
Septum
| Material: | silicone |
| Diameter available for puncture | 12.8 mm |
| Maximum number of punctures | 2000 with 22 GA Huber needle 1000 with 19 GA Huber needle |
A 50 micron filter inside the chamber prevents the output of particles into the catheter.
| REF | Chamber | Catheter description | int ø mm | ext ø mm | GA | Length mm | Volume ml |
| 201.17.10.61 | ETI | PU with open tip | 0.5 | 1.0 | 19 | 900 | 0.18 |
| 201.17.10.71 | ETI | PU with closed tip and lateral holes | 0.5 | 1.0 | 19 | 900 | 0.18 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Blunt needle
- Tuohy needle 17 GA x 80 mm
- Tunnelizer

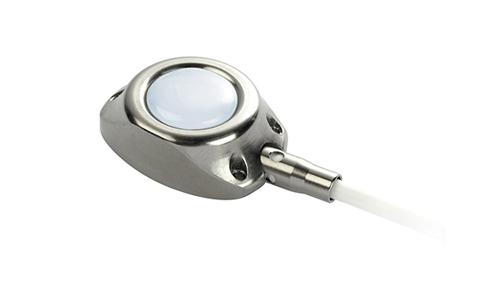

Easy to Implant Arterial
Implantable Port – Arterial System
- Small chamber
- Wedge-shaped for easy insertion into underskin pocket
- Large self-sealing septum facilitates location during skin palpation and reduces risks of puncture concentration
- High needle retention due to pressure exerted on self-seal ing septum by titanium components
- Titanium assures highest mechanical reliability and stability
Features
Chamber
| Material: | titanium |
| Shape and dimensions: | wedged – base 27.5 mm x 19 mm |
| Height: | 10.5 mm |
| Weight: | 10.5 g |
| Internal volume: | 0.53 ml |
Septum
| Material: | silicone |
| Diameter available for puncture | 12.8 mm |
| Maximum number of punctures | 2000 with 22 GA Huber needle 1000 with 19 GA Huber needle |
| REF | Chamber | Catheter description | int ø mm | ext ø mm | FR | Length mm | Volume ml |
| 201.17.10.51 | ETI | Silicone | 1.0 | 2.1 | 6.5 | 780 | 0.61 |
Package Configuration
- Port chamber
- Catheter
- Connector
- Huber needle 22 GA x 25.4 mm
- Luer connector
Our Blogs
Polymed Receives ‘India Medical Devices Company of the Year’ Award
The Award, presented by the Government of India, underscores Polymed’s continued leadership position in Medical devices sector Polymed focuses on tapping huge potential in Domestic ...
Read More
Read More
Fundamentals, Lets Go Back to Basics
Polymed announces the Academic Initiatives in collaboration with Infusion Nurses Society, India on nursing practices for good nursing care. As the work of nursing becomes ...
Read More
Read More
Guarded fistula needle reduces Needle Stick Injuries in Haemodialysis Units
Needle Stick Injuries are injuries caused by accidental penetration of the skin by an injection needle. Globally, NSI’s are the most common source of occupational ...
Read More
Read More
Quick Contact
EMAIL
info@polymedicure.com
Call Us
+91 9999 999 999
CAREER
ca@polymedicure.com
