Mini Mid Lines – Over the Needle


polylead-otn-1
polylead-otn-3
polylead-otn-4
polylead-otn-5

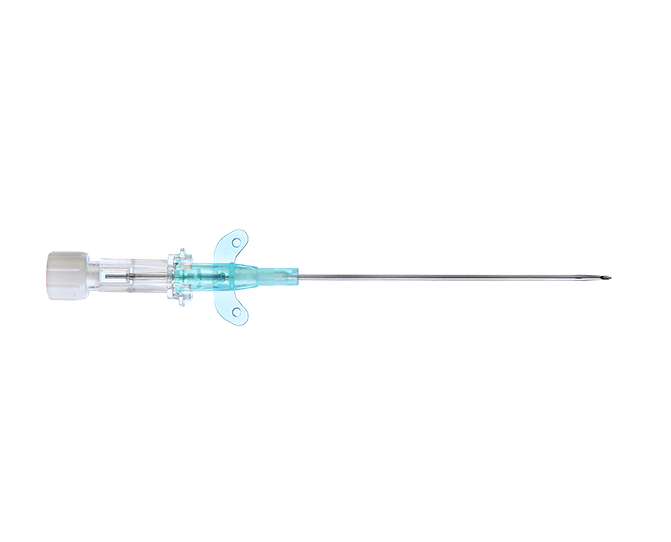

Poly Lead – OTN

13440-13531

  • The New Mini-Mid line kit Over-the-needle is suitable for “dificult insertion vascular access”and needs approach to vessels by “Internal Juglar Vein”

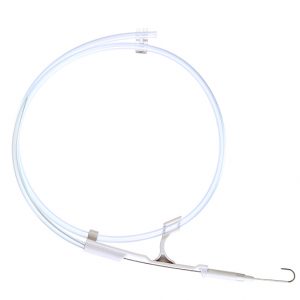

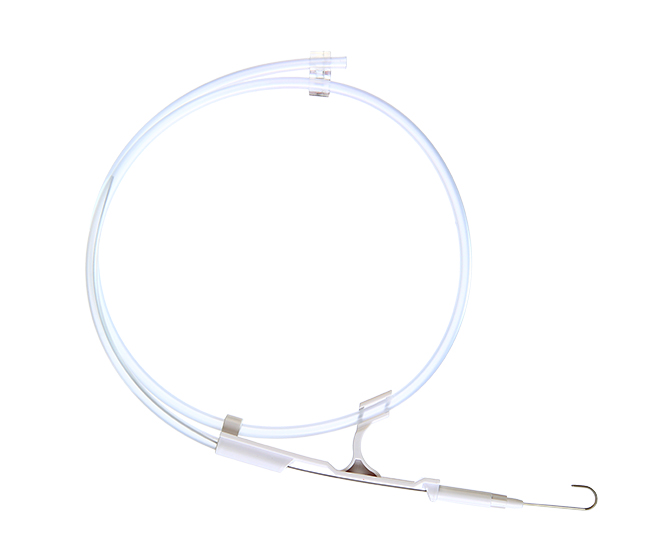

  • The kit contains also a Soft flexible Kink resistant straight Nitinol Guide wire for conversion into a over-the wire
  • Made of specially formulated and biocompatible radio opaque Polyurethane material providing strength during insertion
  • Specially designed soft tip for smooth & easy insertion of catheter

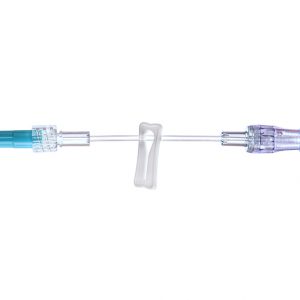

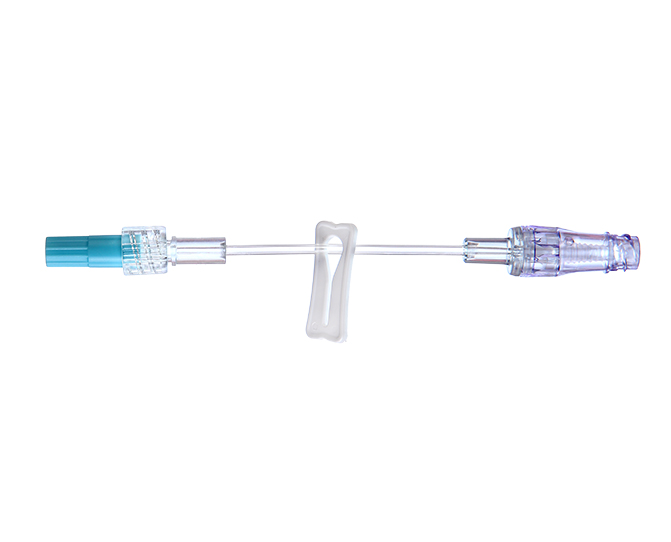

  • Needle free connector (5cm) provides closed system

Compatible with Power injectors upto 325-330 PSI

Size Catheter O.D.mm Catheter Length mm Flow Rate (ml/mnt)
14G Orange 2.0 45  305
16G Grey 1.7 45 200
17G White 1.5 45 142
18G Green 1.3 45/32 90

polylead-otn-1

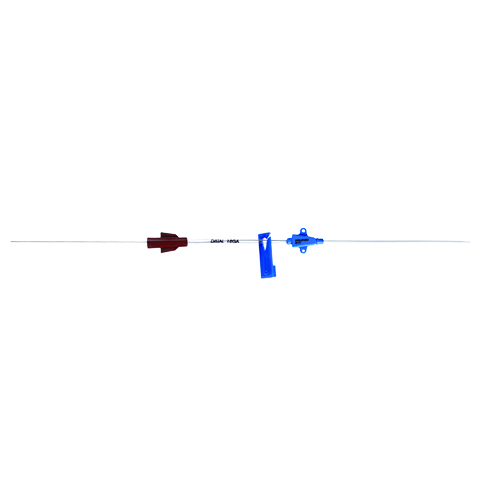

Poly Lead-OTW

13535-13586

Radio-opaque PUR catheter with fixation wings: To be used with Seldinger techique by introducer needle and straight guidewire
Kit Consists of :

  •  Mini Mid Line Catheter
  •  Introducer Needle
  •  Nitinol Guidewire Straight Point (OD 0.018)
  •  Securement Device

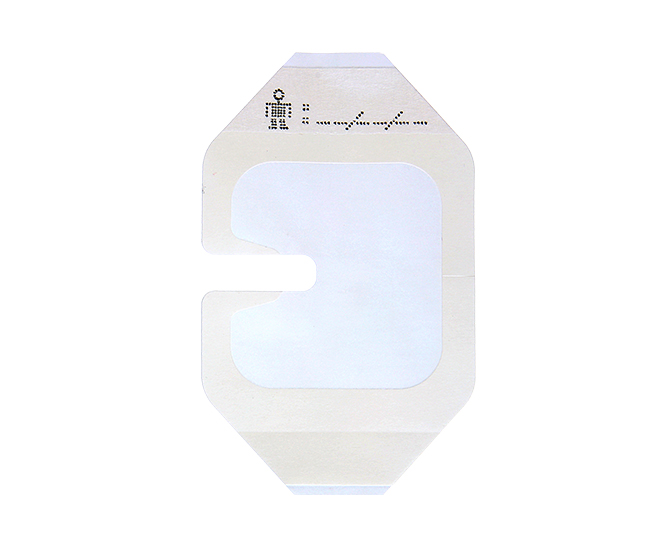

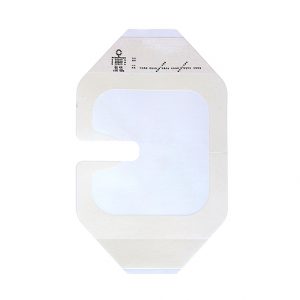

  • Wound IV Dressing
  • Drape

Options Available

  •  Probe cover
  •  Gel for U.S. Machine
  •  Needle Free Connector

Compatible with Power injectors upto 325-330 PSI

Fr Size G Catheter Length mm Flow Rate (ml/min) Guidewire Length mm Introducer Needle
4 18G 40 40 250 21Gx54mm
4 18G 60 38 250 21Gx54mm
4 18G 80 40 250 21Gx54mm
4 18G 120 40 250 21Gx54mm
3 20G 40 40 250 21Gx54mm
3 20G 60 40 250 21Gx54mm
3 20G 80 40 250 21Gx54mm
3 20G 120 40 250 21Gx54mm
2 22G 40 40 250 21Gx54mm
2 22G 60 40 250 21Gx54mm
2 22G 80 40 250 21Gx54mm
2 22G 120 40 250 21Gx54mm
